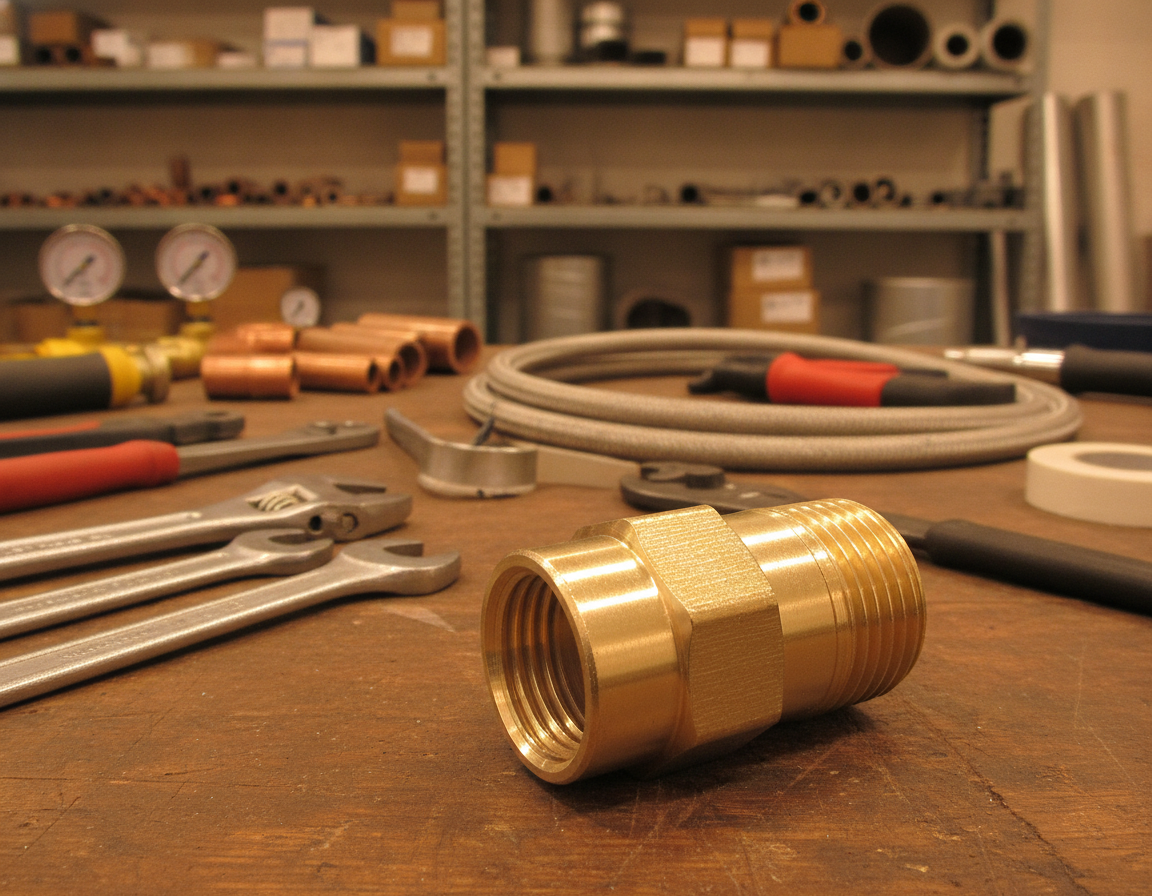

Female compression fittings deliver a practical, reliable way for connecting pipes and tubing. They remove the need for solder or welded joints. This overview covers the function of female compression fittings, breaking down how the compression nut and ferrule help form a tight seal. It also highlights their importance in both plumbing and HVAC applications.
3 8 Male Compression Fitting
Using high-quality pipe fittings can meaningfully cut energy losses. This also helps stop refrigerant or water leaks, which can damage the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, rely on robust connections. Specifying the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is critical for long-term system performance.
For plumbing work, PEX or PVC with compression fittings are commonly selected for their ease of service and low heat exposure. For different demands, refrigeration lines require fittings that can tolerate thermal fatigue and preserve a seal across a wide temperature range. InstallationPartsSupply.com and its product lines support these needs, carrying common sizes and parts such as ferrules and compression nuts.
Key Takeaways
- This female compression fitting style uses a compression-nut and ferrule assembly to seal without soldering.
- Selecting the right material—brass, copper, stainless, PVC, or PEX—helps prevent corrosion and failure.
- Correct fittings lower energy loss and limit refrigerant or water leaks in HVAC and plumbing systems.
- Compression fittings guide resources and suppliers like InstallationPartsSupply.com simplify part selection.
- Check ferrules and tighten per manufacturer torque to ensure a long-lasting seal.
Understanding Compression Fittings And HVAC Vs Plumbing Applications
Compression fittings fasten pipes and tubing without solder or welding. They are commonly used on copper, PEX, PVC, and stainless lines where heat or flame is not preferred. Many professionals source parts from Installation Parts Supply to improve consistent quality and fit.
What A Compression Fitting Is And How It Works
A compression fitting uses a nut and a ferrule olive pressed against the pipe by the fitting body. As the nut tightens, it squeezes the brass ferrule or sleeve, which presses into the outer pipe and forms a seal. This mechanical action demonstrates the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
HVAC Vs Plumbing Fittings: Key Differences
HVAC fittings must handle refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings usually handle potable water, wastewater, and pressure from building systems. In HVAC vs plumbing fittings, selection depends on media, service temperature, and pressure ratings.
HVAC systems like split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing applications often favor PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Common Materials Used In Compression Fittings
Copper fittings are valued for excellent thermal conductivity and corrosion resistance. Brass parts such as ferrules offer resistance to wear and are common in many compression fittings. Stainless steel works well in corrosive or high-pressure environments.
PEX compression is often selected for domestic water lines because it tolerates freeze-thaw cycles and is flexible. PVC is still a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Fitting Material | Primary Use | Key Strengths | Limitations |
|---|---|---|---|
| Copper Components | Refrigerant piping and potable water | Strong conductivity with durable performance | Higher cost, prone to mechanical damage |
| Brass Material | Compression nuts, fitting bodies, and ferrules | Machinable and resistant to corrosion | May react with incompatible metals |
| Stainless fittings | Demanding corrosive applications | Very durable, corrosion-resistant | Costly, harder to machine |
| PEX Material | Domestic water systems | Flexible and resistant to freeze-thaw cycles | Requires correct inserts and compatible fittings |
| PVC Material | Drains and low-pressure chilled water | Affordable and easy to work with | Not ideal for high-temperature or high-pressure work |
Why Proper Fitting Selection Affects Energy Efficiency And Leak Prevention
Using the correct fitting helps reduce leak risk and maintains system pressure. In refrigeration circuits, a poor joint can release refrigerant and lower efficiency. Leak-tight joints and material compatibility cut maintenance and lower energy waste.
Matching the right ferrule type and matching copper fittings or PEX compression hardware limits the risk of galvanic corrosion and thermal fatigue. That selection strategy improves service life and keeps HVAC and plumbing systems running efficiently.
Understanding Female Compression Fittings
A female compression fitting connects and seals a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This fitting creates tight connections without soldering, making it common in plumbing and HVAC. Unions and adapters allow quick disassembly for service or instrument changes.
Basic Definition And Common Fitting Styles
A usual compression assembly includes a female compression nut, a ferrule olive, and the fitting body. The nut screws onto the fitting body and compresses the ferrule to grip the tube. Many systems use unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Choosing Compatible Materials
Brass and copper are typical choices for refrigerant fittings and hot-water lines due to their ability to withstand thermal cycles and resist deformation. Stainless steel suits high-pressure or corrosive environments. PVC and PEX commonly serve condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Plumbing, HVAC, And Instrumentation Uses
In standard plumbing work, female compression fittings link stops, valves, and supply lines without solder. In HVAC, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Gas lines and instrumentation often use compression parts for leak-tight, serviceable connections.
Comparing Female Compression Fittings, Male Fittings, And Adapters
A female fitting accepts a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter lets technicians interface service valves and gauges to the system. Matching materials helps prevent galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Component | Material Choice | Usual Application | Service Reminder |
|---|---|---|---|
| Female nut | Machined brass | Supply lines and valve connections | Replace when rounded, cracked, or damaged |
| Ferrule sleeve | Brass/stainless steel | Forms a seal on copper, brass, and some PEX | Often not reusable after compression |
| Compression fitting body | Brass or stainless steel | Refrigerant fittings, instrumentation | Match to refrigerant type and pressure rating |
| 3/8 Male Compression Fitting | Brass, copper | Mating for female ports, small-diameter lines | Check thread and seat compatibility |
| 3/8 service valve adapter | Brass | Service gauges, manifold connections | Use with proper seals for refrigerant fittings |
| Installation Parts Supply inventory | Various | Supplier for compatible kits and replacement parts | Choose compatible ferrules and nuts for longer service life |
Compression Fitting Types, Sizes, And Adapters For Plumbing And HVAC
This section delves into the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Contractors select couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. Choosing these components significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and compression unions enable the creation of removable joints for maintenance and testing. Couplings work well for straight connections, while compression unions are helpful for components that need to be disconnected without disrupting the line. For small runs, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters help with tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting helps connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs include a wide range of these components, ensuring quick access on job sites.
Picking the correct fitting size matters, depending on the tube’s outside diameter and the ferrule and nut set. Confirm that the female compression fitting size matches the tube OD to prevent leaks. When working with 3/8″ lines, verify ferrule compatibility and torque specifications. Also check the system’s maximum pressure and temperature ratings before making a final selection.
The Max Adaptor and 3/8 Valve Adapter are useful for connecting gauges, service ports, and small refrigerant lines. These parts help simplify the process of charging and diagnostics in HVAC systems. In compact HVAC systems, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Material choice balances between durability and corrosion resistance. Stainless steel provides strong corrosion resistance and durability, making it suitable for harsh environments. Copper and brass suit refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PVC and PEX are suitable for low-pressure condensate and water lines but not for high-pressure refrigerant service.
Fitting sustainability is affected by leak prevention and recyclability. Well-sealed metal fittings can lower refrigerant emissions and can be recycled at the end of their life. Choosing quality parts from dependable suppliers reduces failures and minimizes long-term environmental risk.
The comparison below helps buyers choose between common options by application, pressure, temperature, and reusability.
| Fitting Type | Primary Application | Max Pressure Typical | Temperature Range | Reuse Potential |
|---|---|---|---|---|
| Brass compression coupling | Instrumentation, small water lines, and refrigerant service | Up to 3,000 psi varies by spec | Approximately -65°F to 250°F | Limited, because ferrules are often replaced |
| Brass or stainless compression union | Disconnect points for maintenance | Around 2,500 psi depending on spec | Typical range from -65°F to 300°F | High, because it is designed for disconnects |
| 3/8 Compression Coupling | Small-diameter water, instrument, and refrigerant lines | Depends on system; confirm pressure rating | Review material specs before HVAC service | Moderate, though often replaced during service |
| Small male compression fitting | Connection to service valves and gauges | Rated for refrigerant service when brass/stainless | Appropriate for typical HVAC temperature cycles | Reusable when not damaged |
| Max Adaptor in brass or stainless | Service-tool connection for gauge and valve interfaces | High when designed for service-tool use | Meets HVAC temperature cycles | Built for repeated connection and removal |
| PVC/PEX fittings | Condensate and low-pressure water | Low, with no high-pressure refrigerant use | Commonly around 32°F to 140°F | Reusable in some systems; limited life under UV |
When sourcing parts, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Make sure the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Compression Fitting Installation, Best Practices, And Maintenance
A reliable compression fitting installation starts with clean, square pipe ends and the right parts. For refrigerant lines in HVAC systems, use copper and brass. For condensate or chilled water, PVC or PEX is best. Review manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
How to install compression fittings
1. Begin by cutting and deburring the tube to a square face. 2. After that, slide the nut and ferrule onto the pipe in that order. 3. When using soft plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Start by hand-tightening the nut, then use the two-wrench technique to finish the joint.
Tools and techniques
Apply the two-wrench technique to hold the fitting body and turn the nut to prevent tube twist. Follow torque guidance from the fitting maker or Installation Parts Supply when available. A common method is to snug by hand, then add a limited number of wrench turns.
When to use pipe inserts
Pipe inserts should be used with soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Do not use inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common errors and ferrule removal
Prevent both loose and overly tight joints. Under-tightening may allow leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Ferrules are usually single-use; plan to replace them when disassembling a joint.
Safe ferrule removal steps
Start by isolating the supply and releasing pressure. Stabilize the fitting body with one wrench while loosening the nut with a second. Remove the nut and slide out the ferrule. When the ferrule is seized, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
3/8 Valve Adapter installation guidance
For small lines such as a 3/8″ valve connection, prepare the tubing the same way and follow the two-wrench technique. Several steps for installing a 3/8 Valve Adapter mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Inspection and maintenance
After bringing the system up to pressure, inspect joints for weeps and tighten slightly if needed. Schedule routine inspections for corrosion and thermal fatigue, mainly on refrigerant circuits. Avoid installing compression connections where vibration will loosen them over time.
| Step | Task | Tip |
|---|---|---|
| Prep Work | Square-cut, deburr, and clean the pipe | Choose a quality cutter and deburrer |
| Fit-Up | Slide nut, ferrule, then insert into fitting | Use inserts on PEX or PVC to hold tube shape |
| Tightening | Finger-tighten first, then apply two-wrench tightening | Follow torque guidance from manufacturer |
| Test | Pressurize the system and look for weeps | Look for slow weeps and re-torque slightly if safe |
| Service | Maintain regularly and replace used ferrules | Keep replacement parts from Installation Parts Supply nearby |
Closing Notes
Using the correct compression fitting matters for plumbing and HVAC work. The selected material, whether brass, copper, stainless steel, PVC, or PEX, must align with the service type. That helps maintain reliability and extends system life. Well-matched parts and sound installation help cut energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings deliver a leak-free, solder-free solution. They rely on a nut, ferrule, and body. To help achieve a leak-tight connection, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These steps support long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For specific needs, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, it’s essential to match size and pressure ratings to the task. Quality components from trusted suppliers are key. Installation Parts Supply guidance can help in finding compatible fittings and adapters. Regular maintenance and proper selection preserve system efficiency and compliance.
In closing, dedicating time to material selection and correct assembly is important. That helps create durable, leak-free connections. It allows for optimal performance, fewer repairs, and less environmental harm.
