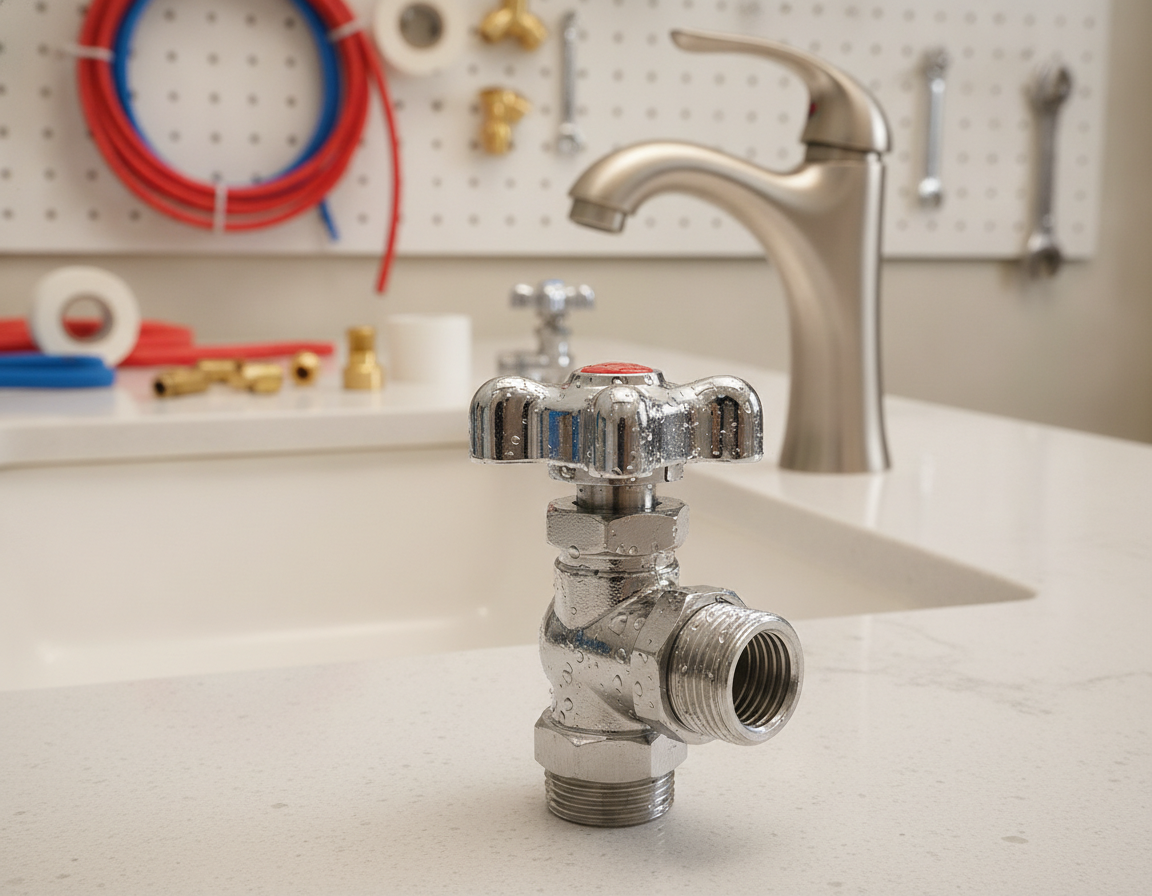

An angle stop is a small, L-shaped shutoff valve where a water line meets a fixture. These valves are commonly found beneath sinks, behind toilets, and near appliance hookups. A functioning Plumbing Angle Stop lets you isolate one fixture without shutting off the main supply. This makes repairs and replacements faster and less disruptive.
Angle Valve For Sink
Most home angle stops are 3–6 inches tall and turn water 90 degrees toward the fixture. Modern installations favor quarter-turn ball-style Angle Stop Valve designs. These are quicker to operate and tend to last longer. If an angle stop corrodes, leaks, or becomes stiff, replacing it helps prevent water damage and simplifies future maintenance.
Key Takeaways
- Plumbing Angle Stops let you shut off water to one fixture without touching the house main.
- Angle Stops Plumbing are commonly installed under sinks and behind toilets for easy access.
- Most Angle Stop Valve units are compact, often 3–6 inches tall, and redirect water at a right angle.
- Quarter-turn models are commonly preferred because they shut off faster.
- Replace valves that leak, corrode, or become difficult to operate to avoid water damage.
What An Angle Stop Is And Why It Matters
An angle stop is a small shutoff valve placed where the supply line connects to a fixture. It controls flow to one fixture, allowing repairs or replacements without shutting off the main supply. Homeowners, plumbers, and building inspectors rely on it to keep repairs quick and contained.
Definition And Simple Explanation
An angle stop is a right-angle valve installed on the supply line feeding a fixture. It comes in different designs, including Angle Stop Valves with multi-turn stems or quarter-turn ball internals. A Plumbing Angle Stop is designed to fit neatly in tight spots such as under-sink cabinets and behind toilets.
Common Angle Stop Locations In A Home
Plumbing Angle Stops are commonly found under kitchen and bathroom sinks. They sit at the back of cabinets where the supply line enters. Toilet angle stops are normally mounted on the wall behind or beside the toilet tank. Angle stops may also appear at appliance connections, including dishwashers, ice makers, washing machines, and some water-heater cold-supply lines.
Homeowner Benefits Of Angle Stops
A major advantage of an Angle Valve For Sink is fixture isolation. With a working Plumbing Angle Stop, you can shut off a single sink, toilet, or appliance line while fixing a leak or replacing a fixture. This keeps small leaks from turning into major water damage and limits disruption during repairs.
Another advantage is convenience. Angle Stops Plumbing are space-saving, quick to access, and reduce repair downtime. Periodic exercising of the valve keeps it operable. Upgrading old multi-turn stops to modern quarter-turn Angle Stop Valve models speeds emergency responses and lowers stress.
Difference Between Angle Stop And Angle Seat Valve
Household angle stops serve low-pressure potable water lines. They are designed for sinks, toilets, and common appliances. An industrial Angle Seat Valve is a different type of valve. It handles high-pressure, high-temperature, or corrosive media found in steam, chemical, and HVAC systems. Angle seat valves use metal seats and pistons for durability in demanding environments, while an Angle Stop is a simple residential fixture shutoff.
Angle Stop Types And How To Choose One
Choosing the right angle stop for a home project means considering material, operation, connection type, and special features. This guide compares common options to help homeowners and plumbers choose a durable, code-compliant fixture shutoff.
Angle Stop Materials
Brass is widely used as the standard material for Angle Stops. It resists corrosion and can last 10–20 years, making it ideal for Quarter-Turn Angle Stops. Stainless steel bodies are useful in humid basements, coastal locations, and exposed areas where rust resistance matters. Plastic-bodied stops are cheaper, but they are typically less durable and can degrade in hot-water service. For potable water lines in the United States, select a Lead-Free Angle Stop that meets applicable federal and state requirements.
Operation Styles
Quarter-turn valves use a ball or disc and open with a 90-degree turn. They offer low turning force and better resistance to mineral buildup, which makes them useful for frequent operation and emergencies. Multi-turn valves use a rising stem and require several rotations for full shutoff. They can offer finer flow control, but older units are more likely to leak.
Connection Types
Compression Angle Stop fittings use a nut and ferrule, making them common for copper and CPVC stub-outs. They install without heat and are popular in remodels. Sweat Angle Stop joints are soldered for a slim, permanent seal and work well in tight spaces where a torch is acceptable. FIP-threaded valves attach to male adapters and usually require PTFE tape or pipe-thread sealant. Push-Fit Angle Stop models, including SharkBite-style options, can slide onto copper, CPVC, or PEX without special tools. They are useful for DIY work or cramped areas, while Compression Angle Stop options remain common where future rework is expected.
Special Features
Some Angle Stop Valve models include a Water Hammer Arrestor Angle Stop. They use an air chamber or piston to absorb pressure shock from quick-closing fixtures and reduce pipe banging. For coastal or humid environments, choose a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems. A Lead-Free Angle Stop marking on the body helps confirm the valve is intended for potable-water use. Select a model that matches your pipe type and service expectations to avoid premature failure.
Plumbing Angle Stops
Plumbing angle stops control water flow to fixtures with a right-angle design. Choosing the right size and style affects performance, ease of service, and compliance. Below, we cover common markings, placement, potable-water standards, and modern standardization trends.
Common Sizes And Reading Valve Markings
In homes, inlet fittings are usually 1/2 inch nominal, while fixture outlets are often 3/8 inch compression. Valve markings often appear as 1/2 x 3/8, 1/2” MIP x 3/8” OD, or similar size combinations. Those markings show which side connects to the supply pipe and which side connects to the fixture hose. Some valves are marked 3/8 COMP to indicate a compression outlet. Make sure the inlet matches your supply pipe, whether it is 1/2 FIP, 1/2 MIP, or 1/2 sweat.
Common Home Placement
Angle stops are commonly found under kitchen and bathroom sinks and behind toilets. They are also used for appliances such as water heaters, dishwashers, ice makers, and washing machines. Under-sink valves are commonly located at the rear of cabinets, while toilet stops are generally visible near the wall behind the tank.
Lead-Free Code Notes For Drinking Water
In the United States, valves used on drinking-water lines must comply with lead-free requirements for wetted surfaces. Look for a Lead-Free Angle Stop with compliant markings and documentation. Contractors should follow local plumbing codes and provide the appropriate certifications, testing information, and warranty support.
Industry Trends And Recommended Standard
Modern Angle Stops often use quarter-turn ball designs. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Many plumbers standardize on brass 1/2 x 3/8 angle stops for sinks and toilets because they simplify stocking, replacement, and maintenance. Models with arrestors and other potable-water protection features are increasingly common in new installations.
Quick Checklist For Choosing Angle Stops
- Confirm Valve Markings for inlet type and outlet size before purchase.
- Make sure the Angle Valve For Sink or toilet stop matches the supply hose, fixture threads, and tank connection.
- Specify a Lead-Free Angle Stop when the line serves potable water.
- Standardize on Quarter-Turn Angle Stop 1/2 x 3/8 units for easier repair and reliability.
Installing And Replacing Angle Stops With Tools Steps And Best Practices
Before working on a plumbing angle stop, decide whether the main water supply needs to be shut off. Only shut the main if the existing stop will not close fully, is damaged, or is frozen. For many under-sink jobs, the line can be isolated at the fixture valve itself. Always relieve pressure by opening a downstream faucet, and keep towels plus a bucket nearby.
Before the repair begins, collect the necessary tools, fittings, and supplies. You will need an adjustable wrench, backup wrench, tube cutter, and deburring tool. Emery cloth, PTFE tape, a marker, and a flashlight are also helpful for clean preparation and inspection. For push-fit installs, bring the manufacturer’s push-fit angle stop, a PEX stiffener, and spare ferrules and nuts for compression work. Penetrating oil can help with stuck fittings, while a heat shield is useful around sweat connections.
Installation Checklist:
- Two-wrench setup for secure tightening
- Clean-cutting and deburring tools
- PTFE tape and marker
- Push-fit angle stop and PEX stiffener
- Spare ferrules, nuts, penetrating oil, and towels
Follow specific steps for each connection type. For a compression connection, slide the nut and ferrule onto the pipe and seat the valve squarely against the pipe shoulder. Start the nut by hand, then tighten another 1/4–1/2 turn with a wrench. When tightening the outlet nut, use a backup wrench to prevent twisting the stub-out.
For push-fit installation, make a square pipe cut and deburr the end thoroughly. Mark the insertion depth and push the valve straight on to the depth mark. Tug lightly to confirm the fitting locked. Push-fit angle stop fittings can work with copper, CPVC, and PEX, but PEX may require a stiffener depending on the product.
Sweat angle stop connections need careful preparation and heat control. Remove or protect seals, clean and flux the pipe and valve cup, heat evenly, and apply solder properly. After cooling, wipe the joint to remove residue. Use a heat shield or remove seals to prevent damage during sweating.
For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten the valve until it is sealed and aligned, connect the supply line, and test with water slowly.
Test the work by turning water on slowly and watching the joints. Open the angle stop and fixture in stages rather than all at once. Wipe joints to spot tiny weepers. Exercise the valve and recheck after pressure stabilizes to catch slow leaks.
Be aware of common mistakes that can lead to failures. Over-tightened compression nuts may deform ferrules and create leaks. Do not reuse damaged ferrules; when necessary, cut back the pipe and install a new ferrule. Do not solder near heat-sensitive seals unless they are protected or removed. Do not twist while inserting push-fit fittings, and always follow manufacturer depth marks.
Common trouble points include a frozen or leaky stop that forces a main shutoff, misapplied PTFE tape that causes threaded leaks, and tightening outlet nuts without a backup wrench. Keeping spare parts available and following proper tightening guidance helps reduce repeat repairs.
Angle Stop Problems And Quick Repairs
Small leaks, stuck handles, and stiff valves are common angle stop problems for homeowners. A quick inspection can show whether the valve needs a minor repair or complete replacement for dependable service.
Leaks Around The Handle
In older multi-turn valves, seepage at the stem usually starts with a loose packing nut. Tightening the nut about 1/8 turn with an adjustable wrench can often solve the issue. If water still seeps, the internal washer, O-ring, or packing may be worn and the valve may need replacement.
Frozen Or Stuck Valves
Stuck angle stops often result from Mineral Buildup or rust. Applying a penetrating oil such as WD-40 and allowing it to sit for about ten minutes can sometimes loosen the valve. A gentle back-and-forth motion may help break the handle free. If it remains stuck or the handle is brittle, replace the stop to avoid a flood.
Compression Joint Weeps
A continuing compression-joint leak often points to a crooked ferrule, damaged pipe end, or poor seating. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is damaged or worn, cut back the pipe, fit a new ferrule, and tighten carefully without over-compressing it.
When To Upgrade
If a home has repeated leaks, frozen handles, visible corrosion, or valves older than about ten years, modern angle stops are worth considering. A Quarter-Turn Upgrade to a ball-style valve can improve shutoff speed, resist Mineral Buildup, and make emergency service more dependable.
Quick Checklist
- For stem drips, tighten the packing nut slightly and recheck.
- Use Penetrating Oil and gentle motion for stuck valves.
- Reseat the ferrule or cut back the pipe for compression leaks.
- Upgrade to quarter-turn stops when valves freeze or leak repeatedly.
Turning angle stops occasionally and inspecting for corrosion can reveal problems before they become emergencies. Promptly addressing leaks, stuck valves, or weeping joints prevents larger repairs and maintains Angle Stop Reliability.
Final Thoughts
This Plumbing Angle Stops Guide shows why small fixture shutoff valves are so important. They let homeowners shut off one fixture without disrupting water to the whole house. Selecting the proper material, valve operation, and connection style makes future repair work simpler. It also reduces the risk of water damage during upgrades.
For strong everyday performance, many professionals prefer lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors are also useful where water hammer is a concern. Homeowners should periodically test valves and replace Plumbing Angle Stops that leak, stick, or corrode. Parts may cost $6 to $60, while professional installation can range from $75 to $200 depending on location and complexity.
If installation is uncertain, consulting a licensed plumber is wise. A qualified plumber can check code requirements, complete the work properly, and often provide warranty-backed service. This protects fixtures and simplifies maintenance. It also supports current Angle Stops Plumbing best practices for today’s residential systems.
